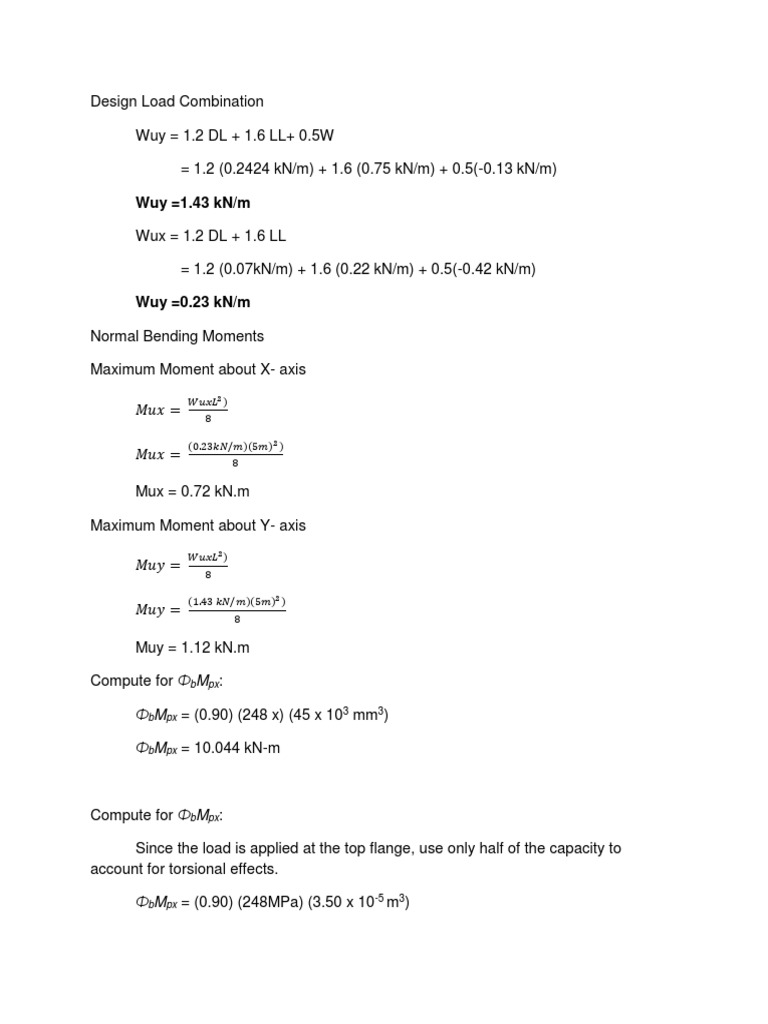

Design Load Combination

Wuy = 1.2 DL + 1.6 LL+ 0.5W

= 1.2 (0.2424 kN/m) + 1.6 (0.75 kN/m) + 0.5(-0.13 kN/m)

Wuy =1.43 kN/m

Wux = 1.2 DL + 1.6 LL

= 1.2 (0.07kN/m) + 1.6 (0.22 kN/m) + 0.5(-0.42 kN/m)

Wuy =0.23 kN/m

Normal Bending Moments

Maximum Moment about X- axis

𝑊𝑢𝑥𝐿2 )
𝑀𝑢𝑥 = 8

(0.23𝑘𝑁/𝑚)(5𝑚)2 )
𝑀𝑢𝑥 = 8

Mux = 0.72 kN.m

Maximum Moment about Y- axis

𝑊𝑢𝑥𝐿2 )
𝑀𝑢𝑦 = 8

(1.43 𝑘𝑁/𝑚)(5𝑚)2 )
𝑀𝑢𝑦 = 8

Muy = 1.12 kN.m

Compute for ΦbMpx:

ΦbMpx = (0.90) (248 x) (45 x 103 mm3)

ΦbMpx = 10.044 kN-m

Compute for ΦbMpx:

Since the load is applied at the top flange, use only half of the capacity to
account for torsional effects.

ΦbMpx = (0.90) (248MPa) (3.50 x 10-5 m3)

 ΦbMpy = 7.812 kN-m

Compute for ΦbMpy:

Since the load is applied at the top flange, use only half of the capacity to
account for torsional effects.

ΦbMpy = (0.90) (248MPa) (4.40x 10-5 m3)

ΦbMpy = 4.91 kN-m

Using expression:

Mux/ ΦbMpx + Muy /ΦbMpy < 1.0

0.72𝑘𝑁.𝑚 1.12𝑘𝑁.𝑚
+ = 0.32 < 1.0 − 𝑺𝑨𝑭𝑬
7.812 𝑘𝑁.𝑚 4.91𝑘𝑁.𝑚

Therefore use LC 100x50x2 Purlins

b. Design of the Top, Bottom, and Web members

Bar Forces from Roof Truss Analysis

TRUSS MEMBER FORCE

AC = BG 68.11 kN (T)
AD = BF 19.09 kN (T)
AI = BH 46.88 kN (C)
DI = FH -
DJ = FJ 8.09 kN (C)
DE = FE 8.19 kN(C)
IJ = HJ 46.88 kN (C)
EJ -

Using L50x50x5 Top, Bottom Chord and Web Members

Properties L90x90x6
Weight (kg/m) 8.30
Area (mm2) 1056.98
Depth (mm) 90
Width (mm) 90
Thickness (mm) 6
I (103 mm4) 803.2
S (103 mm3) 12.2
r (mm) 27.57
x or y (mm) 24.05

𝑘𝐿 0.5 (5.025𝑚)(1000𝑚𝑚)
= = 91.13
𝑟 27.57𝑚𝑚

2𝜋𝐸 2𝜋(200𝑥109 )
𝐶𝑐 = √ = √ = 126.17
𝐹𝑦 248𝑥106
