MEE20003

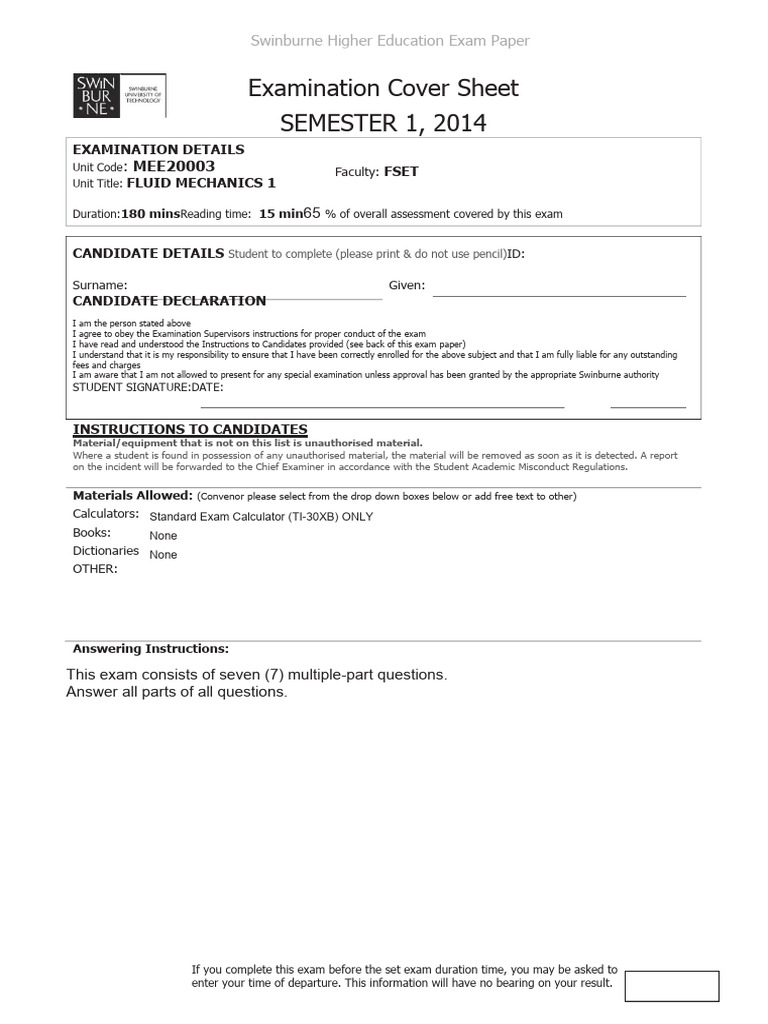

Swinburne Higher Education Exam Paper
Examination Cover Sheet

SEMESTER 1, 2014
EXAMINATION DETAILS
Unit Code: MEE20003 Faculty: FSET
Unit Title: FLUID MECHANICS 1
Duration:180 minsReading time: 15 min65 % of overall assessment covered by this exam
CANDIDATE DETAILS Student to complete (please print & do not use pencil)ID:
Surname: Given:
CANDIDATE DECLARATION
I am the person stated above
I agree to obey the Examination Supervisors instructions for proper conduct of the exam
I have read and understood the Instructions to Candidates provided (see back of this exam paper)
I understand that it is my responsibility to ensure that I have been correctly enrolled for the above subject and that I am fully liable for any outstanding
fees and charges
I am aware that I am not allowed to present for any special examination unless approval has been granted by the appropriate Swinburne authority
STUDENT SIGNATURE:DATE:
INSTRUCTIONS TO CANDIDATES
Material/equipment that is not on this list is unauthorised material.
Where a student is found in possession of any unauthorised material, the material will be removed as soon as it is detected. A report
on the incident will be forwarded to the Chief Examiner in accordance with the Student Academic Misconduct Regulations.
Materials Allowed: (Convenor please select from the drop down boxes below or add free text to other)
Calculators: Standard Exam Calculator (TI-30XB) ONLY
Books: None
Dictionaries None
OTHER:
Answering Instructions:
This exam consists of seven (7) multiple-part questions.

Answer all parts of all questions.
If you complete this exam before the set exam duration time, you may be asked to
enter your time of departure. This information will have no bearing on your result.
MEE20003 Fluid Mechanics 1: Exam paper semester 1
QUESTION 1
1+1+1+1+1+5 = 10 marks
a.A stream of smoke is released from a single point upstream of a wind turbine as the turbine is
spinning to visualize the flow through the turbine. Will the smoke draw
i. Streaklines
ii.Streamlines
iii.Pathlines
iv.All of the above
b.In a Newtonian fluid like air or water, shear stress is linearly proportional to
i.the strain
ii.the pressure
iii.the strain rate
iv.None of the
above
c.Surface tension occurs whenever there is
i.An interface between two immiscible fluids

ii.An interface between a liquid and a liquid only
iii.An interface between a liquid and a gas only
iv.A solid body completely immersed in a
liquid d.Cavitation can occur in a flow of liquid
when
i. The pressure is raised above the vapour pressure at some point in the
flow ii.The flow is brought to rest at some point in the flow
iii. There is no flow so hydrostatics can be applied
iv.The pressure is lowered below the vapour pressure at some point in the
flow e.Internal energy and enthalpy are the same quantity.
i. False. Enthalpy does not account for heat but internal energy does.
ii.False. Enthalpy is the internal energy plus a contribution from pressure.
iii.True.
iv.False. Enthalpy is a property of a gas only, internal energy applies to both gases and liquids.
f.The flow of water over a flat plate is measured, and a velocity profile of u = U0(y + 1)2−5 is
observed, where U0 is the speed of the flow approaching the plate, and y is the distance away
from the plate. If the flow speed U0 = 5m.s−1, what is the shear stress on the flat plate?
Page 1 of 23
QUESTION 2
a.A device for measuring the specific weight γ of a liquid consists of a U-tube manometer as shown.
The manometer tube has an internal diameter of 0.5cm. Exactly 2cm3 of the unknown liquid is
poured into one leg of the manometer, on top of the water that is already in the manometer. A
displacement of 5cm is measured between the top of the water on one side of the manometer
and the top of the unknown liquid. What is the specific weight γ of the unknown liquid? 5 marks
b.For the gate shown in the figure below, α = 45◦, y1 = 1m, and y2 = 4m. Will the gate fall or stay
in position? Assume the gate is rectangular, is 1m wide and weighs 15290kg. Assume the water
temperature is T = 15◦C. 10 marks
Page 2 of 23
QUESTION 3
a.A water jet issues vertically from a nozzle as shown in the figure below. The water velocity as it
exits the nozzle is 18m.s−1. How high will the jet rise? What speed would be required at the nozzle
for the height to double? 7 marks
b.A flow measuring device consists of the flow through a nozzle, a stagnation tap at station 2 con-
nected to a manometer containing water, and a static pressure tap at station 1 also connected to
a manometer as shown in the figure below. The diameter of the nozzle at station 1 is twice the di-
ameter at station 2. Air flows through the nozzle. A height difference of 10cm is recorded
between the water surfaces in each side of the manometer. What is the velocity at station 2? 8
marks
Page 3 of 23
QUESTION 4
a.A guide vane is used to redirect a jet of oil of specific gravity S = 0.9 from purely horizontal to
an angle downward as shown in the diagram below. The speed of the jet is constant (V1 = V2) at
V = 22m.s−1 and the flow rate is 0.15m3s−1. The jet cross section does not change as it passes
over the vane. What force in the x and
− y directions are required to hold the vane in place?
Ignore the weight of the vane. 7 marks
b.A streamlined object is being tested in a wind tunnel using air, held in the tunnel using support
vanes as shown in the figure below. The tunnel has a diameter D = 1m. At a point A upstream
of the object, a pressure gauge measures the pressure as pA = 120kPa, and a constant velocity
of V = 35m.s−1 is recorded. At some point downstream, a pressure gauge measures the
pressure as pC = 50kPa, and a velocity of zero at the centreline of the tunnel is recorded. What
is the maximum velocity at point C? What is the drag on the streamlined object and the support
vanes? Assume viscous resistance on the walls can be neglected. 8 marks
Page 4 of 23
QUESTION 5
a.A water discharge of 8m s is required to flow through a horizontal pipe of diameter 1m in the
3 −1
configuration shown in the figure below. If the head loss is given as hL = 7V 2/(2g) where V is
the mean velocity in the pipe, how much power is required from the pump? 6 marks
b.A flow of water between two reservoirs is to be maintained at 0.10m3s−1. The two reservoirs are
connected by a steel pipe (ks = 45 ×10−6m) that is 15cm in diameter with a pump in the middle,
in the configuration shown in the diagram below. The inlet to the pipe from the reservoir is
smooth with a large radius, and the exit from the pipe into the second reservoir is abrupt. What
power must be supplied by the pump? Sketch the Energy grade line (EGL) and the Hydraulic
Grade Line (HGL) for this system. 9 marks
Page 5 of 23
QUESTION 6
a.The flow rate from a draining cylindrical tank depends on the diameter of the tank D, the diameter
of the drain hole d, the height of fluid in the tank h, and the density ρ and viscosity µ of the fluid.
The setup is shown in the diagram below. Find a consistent set of dimensionless groups to
describe this problem and express the functional relationship between them. 8 marks
b.The drag on a submarine moving underwater in the ocean (seawater density ρ = 1015kg.m−3,
viscosity µ = 1.4 ×10−3m2s−1) is to be determined by testing a 1/18 scale model in a water channel
using pure water at 15◦C. The real submarine will travel at 3m.s−1. At what speed should the water
channel be run? 7 marks
Page 6 of 23
QUESTION 7
a.A spillway is designed to control the overflow from a dam as shown in the figure below. The flow
rate from the dam over the spillway is 2.9m3s−1 per metre of width of the spillway. A hydraulic
jump occurs downstream of the spillway. What will be the depth of the fluid y2 downstream of the
hydraulic jump? Assume that energy losses over the spillway can be neglected. 8 marks
b.A sluice gate is fitted across a rectangular horizontal irrigation channel to control the depth of the
flow in the channel. The channel is 2m wide. A flow rate 3.6m3s−1 is required after the sluice gate.
What range of depths are acceptable after the sluice gate if a hydraulic jump is to be avoided? 7
marks
END OF EXAM
Page 7 of 23
Page 8 of 23
Page 9 of 23
Page 10 of 23
Page 11 of 23
Page 12 of 23
Page 13 of 23
Page 14 of 23
Page 15 of 23
Page 16 of 23
Page 17 of 23
Page 18 of 23
Page 19 of 23
Page 20 of 23
Page 21 of 23
Page 22 of 23
Page 23 of 23
Swinburne Exam Paper
INSTRUCTIONS TO CANDIDATES
1. Examination conditions start now.
2. Please do not start reading or writing until permission is given by an Examination

Supervisor.
3. During an examination you must not have in your possession a book, notes,
mobile phones, any electrical devices, pencil case, paper or any other
materials/items which have not been authorised for the exam or specifically
permitted on the front page of the examination paper. Any material or item on
your desk, chair or person will be deemed to be in your possession. You are
reminded that possession of unauthorised materials in an exam is
Academic Misconduct under the University’s Regulations.
4. A candidate shall comply with all instructions set forth on the examination paper,
with any examination notice displayed in the examination room and with
instructions given by an Examinations Supervisor.
5. A candidate shall not attempt or undertake any activity which may be considered
misconduct including any form of communication with another candidate or person
other than an Examinations Supervisor.
6. All rough work must be completed on the examination paper, blank paper (if
provided) or pages of an examination script book (if provided). You must not use
your own paper for this purpose.
7. Do not remove or detach any part of this exam paper or tear out any part of an
examination script book (if provided).
8. Do not remove from the examination room any worked script, examination book or
other material which is the property of the University.
9. No candidate may leave the examination room during reading time, the first 30
minutes of writing time or the last 15 minutes of the examination.
10. Food is not allowed in exam rooms except for lollies or sweets in clear wrappers.
11. Drinks must be in clear or opaque bottles. There must be no writing or labels on
drink bottles.
Modified: 5 October 2012 | V2

G:\Dept\STUDENT OPERATIONS (New)\STUDENT ADMINISTRATION (NEW)\Assessment\EXAMINATIONS\Notices & Forms\Assessment Office
forms
