IRIS1 NV

OTIS - SIGMA Date : 2011. 04. 11

FIELD ENGINEERING Page : 0 - 1 / 2

FIM 1 Control box

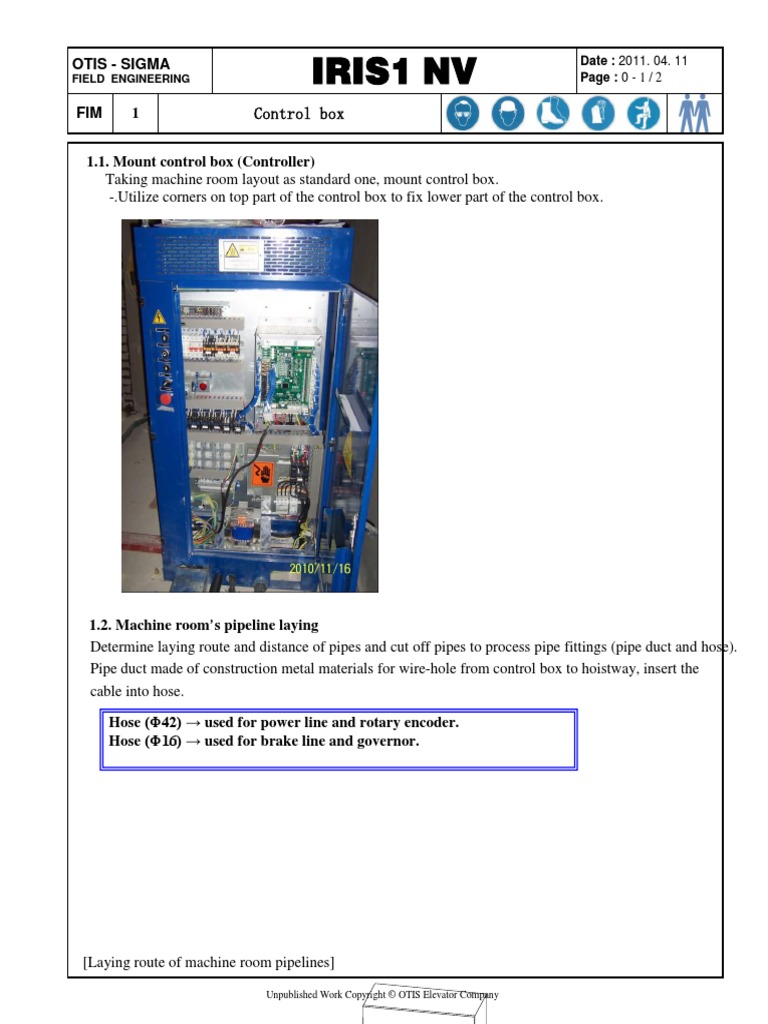

1.1. Mount control box (Controller)

Taking machine room layout as standard one, mount control box.
-.Utilize corners on top part of the control box to fix lower part of the control box.

1.2. Machine room’s pipeline laying

Determine laying route and distance of pipes and cut off pipes to process pipe fittings (pipe duct and hose).
Pipe duct made of construction metal materials for wire-hole from control box to hoistway, insert the
cable into hose.

Hose (Φ42) → used for power line and rotary encoder.

Hose (Φ16) → used for brake line and governor.

[Laying route of machine room pipelines]

Unpublished Work Copyright © OTIS Elevator Company
 IRIS1 NV
OTIS - SIGMA Date : 2011. 04. 11
FIELD ENGINEERING Page : 0 - 2 / 2

FIM 1 Control box

Power line

Power line Φ42

Φ42

Φ16
Φ16

Gov. Cable could be put

into control box Pull Box
