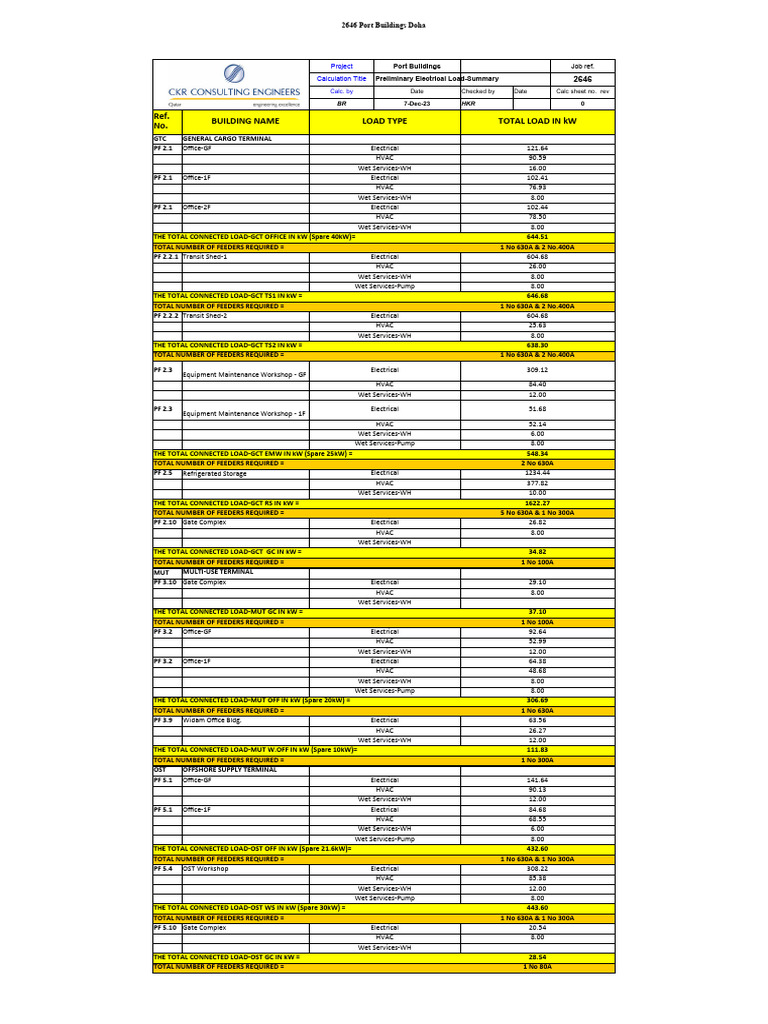

2646 Port Buildings Doha

Project Port Buildings Job ref.

Calculation Title Preliminary Electrical Load-Summary 2646

Calc. by Date Checked by Date Calc sheet no. rev
BR 7-Dec-23 HKR 0

Ref. BUILDING NAME LOAD TYPE TOTAL LOAD IN kW

No.
GTC GENERAL CARGO TERMINAL
PF 2.1 Office-GF Electrical 121.64
HVAC 90.59
Wet Services-WH 16.00
PF 2.1 Office-1F Electrical 102.41
HVAC 76.93
Wet Services-WH 8.00
PF 2.1 Office-2F Electrical 102.44
HVAC 78.50
Wet Services-WH 8.00
THE TOTAL CONNECTED LOAD-GCT OFFICE IN kW (Spare 40kW)= 644.51
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 630A & 2 No.400A
PF 2.2.1 Transit Shed-1 Electrical 604.68
HVAC 26.00
Wet Services-WH 8.00
Wet Services-Pump 8.00
THE TOTAL CONNECTED LOAD-GCT TS1 IN kW = 646.68
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 630A & 2 No.400A
PF 2.2.2 Transit Shed-2 Electrical 604.68
HVAC 25.63
Wet Services-WH 8.00
THE TOTAL CONNECTED LOAD-GCT TS2 IN kW = 638.30
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 630A & 2 No.400A

PF 2.3 Electrical 309.12

Equipment Maintenance Workshop - GF
HVAC 84.40
Wet Services-WH 12.00

PF 2.3 Electrical 51.68

Equipment Maintenance Workshop - 1F
HVAC 52.14
Wet Services-WH 6.00
Wet Services-Pump 8.00
THE TOTAL CONNECTED LOAD-GCT EMW IN kW (Spare 25kW) = 548.34
TOTAL NUMBER OF FEEDERS REQUIRED = 2 No 630A
PF 2.5 Refrigerated Storage Electrical 1234.44
HVAC 377.82
Wet Services-WH 10.00
THE TOTAL CONNECTED LOAD-GCT RS IN kW = 1622.27
TOTAL NUMBER OF FEEDERS REQUIRED = 5 No 630A & 1 No 300A
PF 2.10 Gate Complex Electrical 26.82
HVAC 8.00
Wet Services-WH
THE TOTAL CONNECTED LOAD-GCT GC IN kW = 34.82
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 100A
MUT MULTI-USE TERMINAL
PF 3.10 Gate Complex Electrical 29.10
HVAC 8.00
Wet Services-WH
THE TOTAL CONNECTED LOAD-MUT GC IN kW = 37.10
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 100A
PF 3.2 Office-GF Electrical 92.64
HVAC 52.99
Wet Services-WH 12.00
PF 3.2 Office-1F Electrical 64.38
HVAC 48.68
Wet Services-WH 8.00
Wet Services-Pump 8.00
THE TOTAL CONNECTED LOAD-MUT OFF IN kW (Spare 20kW) = 306.69
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 630A
PF 3.9 Widam Office Bldg. Electrical 63.56
HVAC 26.27
Wet Services-WH 12.00
THE TOTAL CONNECTED LOAD-MUT W.OFF IN kW (Spare 10kW)= 111.83
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 300A
OST OFFSHORE SUPPLY TERMINAL
PF 5.1 Office-GF Electrical 141.64
HVAC 90.13
Wet Services-WH 12.00
PF 5.1 Office-1F Electrical 84.68
HVAC 68.55
Wet Services-WH 6.00
Wet Services-Pump 8.00
THE TOTAL CONNECTED LOAD-OST OFF IN kW (Spare 21.6kW)= 432.60
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 630A & 1 No 300A
PF 5.4 OST Workshop Electrical 308.22
HVAC 85.38
Wet Services-WH 12.00
Wet Services-Pump 8.00
THE TOTAL CONNECTED LOAD-OST WS IN kW (Spare 30kW) = 443.60
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 630A & 1 No 300A
PF 5.10 Gate Complex Electrical 20.54
HVAC 8.00
Wet Services-WH
THE TOTAL CONNECTED LOAD-OST GC IN kW = 28.54
TOTAL NUMBER OF FEEDERS REQUIRED = 1 No 80A
 2646 Port Buildings Doha

Project Port Buildings Job ref.

Calculation Title Preliminary Electrical Load - Analysis 2646

Calc. by Date Checked by Date Calc sheet no. rev
BR 7-Dec-23 HKR 0

Ref. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW

No.
GCT GENERAL CARGO TERMINAL
PF 2.1 Office-GF
Storage/Radio Room 19.00 0.08 1.52
First Aid Room 4.00 0.12 0.48
Reception 3.00 0.12 0.36
Lobby 33.00 0.12 3.96
Staff Entry 5.00 0.12 0.60
Customer Service Mgr. 9.00 0.12 1.08
Accounts Mgr. 9.00 0.12 1.08
Facility Security Mgr. 9.00 0.12 1.08
Customer's Service Area 89.00 0.12 10.68
Staff Women's Toilet 19.00 0.08 1.52
Canteen Break Room 34.00 0.12 4.08
Conference Room 30.00 0.12 3.60
Entry Security Fire 11.00 0.12 1.32
Command Center
Security Control Office 15.00 0.12 1.80
Staff Men's Toilet 19.00 0.08 1.52
Secure File Storage 30.00 0.08 2.40
Public Entry 9.00 0.08 0.72
Air Lock 11.00 0.08 0.88
Lobby 43.00 0.08 3.44
Reception 4.00 0.12 0.48
M. Public Toilet 18.00 0.08 1.44
Copy Room 8.00 0.12 0.96
Server Room 15.00 0.12 1.80
FM Room 4.00 0.08 0.32
Electrical Room 10.00 0.08 0.80
F. Public Toilet 15.00 0.08 1.20
ELV Room 5.00 0.08 0.40
Male Prayer Room 37.00 0.08 2.96
Male Ablution 9.00 0.08 0.72
Female Prayer Room 23.00 0.08 1.84
Female Ablution 7.00 0.08 0.56
Trash Room 5.00 0.08 0.40
Kitchen 71.00 0.50 35.50
Food Storage 13.00 0.08 1.04
Kitchen Receiving Area 7.00 0.08 0.56
Service Entry 6.00 0.08 0.48
Cook Office 13.00 0.12 1.56
Cafeteria 109.00 0.10 10.90
Circulation 195.00 0.08 15.60
PF 2.1 Office-1F

96.00 0.12 11.52

Stevedore Open Office-A
Secure Storage Room 18.00 0.08 1.44
Copy Room 7.00 0.12 0.84
IT Workshop 45.00 0.20 9.00
Electrical Room 10.00 0.08 0.80
ELV Room 5.00 0.08 0.40
IT Dept. Mgr 16.00 0.12 1.92

102.00 0.12 12.24

Stevedore Open Office-B
Storage Room 6.00 0.08 0.48
Supt. Office 12.00 0.12 1.44
Supt. Office 12.00 0.12 1.44
Supt. Office 12.00 0.12 1.44
Supt. Office 12.00 0.12 1.44
Open Office 107.00 0.12 12.84
Storage 11.00 0.08 0.88
Pantry 9.00 0.20 1.80
Break Room 19.00 0.12 2.28
Terrace 21.00 0.05 1.05
Conference Room 48.00 0.12 5.76
Waiting Area 25.00 0.12 3.00
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
Reception 4.00 0.12 0.48
Disabled Toilet 4.00 0.08 0.32
Janitor 5.00 0.08 0.40
Staff Men's Toilet 24.00 0.08 1.92
Staff Women's Toilet 21.00 0.08 1.68
Gate Control Mgr. 15.00 0.12 1.80
Gate Control Eqpt. 13.00 0.20 2.60
Office 12.00 0.12 1.44
Gate Clerk Operations 63.00 0.12 7.56
Lobby 23.00 0.08 1.84
Reception 3.00 0.12 0.36
Lift 10.00
PF 2.1 Office-2F
Terrace 25.00 0.08 2.00
GM 15.00 0.12 1.80
Admin Assistants 30.00 0.12 3.60
Terminal Manager 15.00 0.12 1.80
Terminal Control Center 63.00 0.12 7.56
Yard Ops Office 10.00 0.12 1.20
Electrical Room 10.00 0.08 0.80
Logistics Op. Mgr 10.00 0.12 1.20
ELV Room 5.00 0.08 0.40
Vessel Op Mgr. 11.00 0.12 1.32
Vessel Manager 16.00 0.12 1.92
Vessel Open Office 70.00 0.12 8.40
Accounting Open Office 152.00 0.12 18.24
Accounting Mgr. Office 15.00 0.12 1.80
Storage 11.00 0.08 0.88
Pantry 9.00 0.20 1.80
Break Room 19.00 0.12 2.28
Terrace 6.00 0.08 0.48
Large Conference Room 46.00 0.12 5.52
Reception 4.00 0.12 0.48
Staff Men's Toilet 24.00 0.08 1.92
Staff Women's Toilet 21.00 0.08 1.68
Disabled Toilet 4.00 0.08 0.32
Janitor 5.00 0.08 0.40
Small Conference Room 22.00 0.12 2.64
Terrace 6.00 0.08 0.48
HR Open Office 45.00 0.12 5.40
HR Manager 18.00 0.12 2.16
Lobby 11.00 0.08 0.88
Reception 3.00 0.12 0.36
Circulation 284.00 0.08 22.72
PF 2.2.1 Transit Shed-1
Tools Store 12.10 0.08 0.97
Supt. Office 12.30 0.12 1.48
Supt. Office 12.30 0.12 1.48
Office 27.80 0.12 3.34
Customs Office 23.50 0.12 2.82
IT Server Room 12.60 0.12 1.51
ELV Room 12.40 0.08 0.99
Electrical Room 6.70 0.08 0.54
FM Room 4.40 0.08 0.35
ADA WC 4.40 0.08 0.35
Staff Toilet 19.80 0.08 1.58
Dockside Toilet 20.50 0.08 1.64
Shaft 4.80 0.08 0.38
Break Room & Pantry 12.50 0.20 2.50
Reception & Circulation 63.00 0.12 7.56
Warehouse 7214.90 0.08 577.19
PF 2.2.2 Transit Shed-2
Tools Store 12.10 0.08 0.97
Supt. Office 12.30 0.12 1.48
Supt. Office 12.30 0.12 1.48
Office 27.70 0.12 3.32
Customs Office 23.50 0.12 2.82
IT Server Room 12.60 0.12 1.51
ELV Room 12.40 0.08 0.99
Electrical Room 6.70 0.08 0.54
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
FM Room 4.40 0.08 0.35
ADA WC 4.40 0.08 0.35
Staff Toilet 19.80 0.08 1.58
WC Labourers 20.50 0.08 1.64
Shaft 4.80 0.08 0.38
Break Room & Pantry 12.50 0.20 2.50
Reception & Circulation 63.00 0.12 7.56
Warehouse 7215.00 0.08 577.20

Equipment
PF 2.3 Maintenance
Workshops-GF
Lobby 19.00 0.10 1.90
Reception 10.00 0.12 1.20
Electrical Room 9.00 0.08 0.72
Toilet 7.00 0.08 0.56
Female Ablution 5.00 0.08 0.40
FM Room 2.00 0.08 0.16
Female Prayer Room 13.00 0.08 1.04
ELV Room 7.00 0.08 0.56
Secure Parts & Tools 35.00 0.08 2.80
Storage
Bulk Fluids 40.00 0.08 3.20
Parts Storage 138.00 0.08 11.04
Male Prayer Room 26.00 0.08 2.08
Male Toilet 15.00 0.08 1.20
Office 14.00 0.12 1.68
Office 14.00 0.12 1.68
Male Ablution 9.00 0.08 0.72
Corridor 57.00 0.08 4.56
Spreader Repair Bay 231.00 0.15 34.65
Large Forklift repair Bay 229.00 0.15 34.35
Tractor Repair bay 173.00 0.15 25.95
Green Access Lane 138.00 0.15 20.70
Small Forklift Repair Bay 173.00 0.15 25.95
Tire Shop 115.00 0.15 17.25
Brake Repair Bay 115.00 0.15 17.25
MAFI Type Chassis Repair 348.00 0.15 52.20
Bay
Waste Collection Rm 26.00 0.08 2.08
Mechanical Room 34.00 0.08 2.72
Electrical Room 34.00 0.08 2.72
Machine & Body Repair 34.00 0.20 6.80
Paint Spray Room 34.00 0.20 6.80
Compressor Room 17.00 0.20 3.40
Supt. Office 9.00 0.12 1.08
Locker/Chg. Rooms 14.00 0.08 1.12
Toilets/Showers 27.00 0.08 2.16
First Aid Room 11.00 0.12 1.32
Office 10.00 0.12 1.20
Uniform 7.00 0.08 0.56
Pantry 7.00 0.20 1.40
Labor Break Room 53.00 0.12 6.36
Crane parts 36.00 0.08 2.88
Facility Main 34.00 0.08 2.72
Machine Room 114.00 0.00

Equipment
PF 2.3 Maintenance
Workshops-1F
Manager's Office 12.00 0.12 1.44
Manager's Office 12.00 0.12 1.44
Electrical Room 6.00 0.08 0.48
FM Room 2.00 0.08 0.16
ELV Room 7.00 0.08 0.56
IT Room 13.00 0.08 1.04
Copy Room 13.00 0.12 1.56
Male Toilet 20.00 0.08 1.60
Female Toilet 14.00 0.08 1.12
Janitor 4.00 0.08 0.32
Pantry 15.00 0.20 3.00
Staff Lounge 65.00 0.12 7.80
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
Conference Room 32.00 0.12 3.84
Open Office 85.00 0.12 10.20
Mezzanine Storage 214.00 0.08 17.12
PF 2.5 Ref. Storage
Waste Disposal 46.00 0.08 3.68

285.00 0.08 22.80

Insulated Dock Ante-Room
Foyer 41.00 0.08 3.28
Reception 4.00 0.12 0.48
Lobby 22.00 0.10 2.20
Customs Office 32.00 0.12 3.84
Manager 1 13.00 0.12 1.56
Manager 2 15.00 0.12 1.80
Break Room 39.00 0.12 4.68
Meeting Room 28.00 0.12 3.36
Circulation 35.00 0.08 2.80
Pantry 6.00 0.20 1.20
Store 13.00 0.08 1.04
Men's Restroom 22.00 0.08 1.76
Women's Restroom 23.00 0.08 1.84
Male Prayer Room 33.00 0.08 2.64
Male Ablution 11.00 0.08 0.88
Female Prayer Room 27.00 0.08 2.16
Female Ablution 8.00 0.08 0.64
Mechanical Room 275.00 0.08 22.00
ELV Room 4.00 0.08 0.32
Electrical Room 9.00 0.08 0.72
FM Room 3.00 0.08 0.24

4.00 107.00 428.00

Blast Freezer (No of Racks)

8.00 0.28 2.24

Blast Freezer (No of Racks)

1.00 6.00 6.00

Blast Freezer (No of Racks)
Freezer Room 1(No of 1.00 181.00 181.00
Racks)
Freezer Room 1(No of 3.00 0.36 1.08
Racks)
Freezer Room 1(No of 1.00 6.00 6.00
Racks)
Circulation 577.00 0.08 46.16
Receiving Area 14.00 0.12 1.68
Supt. Office 1 8.00 0.12 0.96
Supt. Office 2 8.00 0.12 0.96
Fork Lift Parking 79.00 0.08 6.32
Waster Processing 45.00 0.08 3.60

Refrigerated Warehouse,
Chiller Room, Insulated 1.00 267.00 267.00
Dock

6.00 16.20 97.20

Refrigerated Warehouse
Chiller Room 6.00 10.35 62.10
Insulated Dock 1.00 5.40 5.40

Refrigerated Warehouse,
Chiller Room, Insulated 1.00 6.00 6.00
Dock
PF 2.10 Gate Complex
Clerk Booth 15.20 0.12 1.82
Canopy Area 500.00 0.05 25.00
MUT MULTI-USE TERMINAL
PF 3.1 Gate Complex
Clerk Booth 15.20 0.12 1.82
Canopy Area 545.60 0.05 27.28
PF 3.2 Office-GF
Cook Office 12.00 0.12 1.44
Kitchen 39.00 0.50 19.50
Cold Store 9.00 0.50 4.50
Dry Store 9.00 0.08 0.72
Waste Collection Rm 7.00 0.08 0.56
Cafeteria 84.00 0.10 8.40
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
Entrance Lobby 15.00 0.08 1.20
Lobby 44.00 0.12 5.28
Facility Sec. Office 12.00 0.12 1.44
Supt. Office 12.00 0.12 1.44
Customer Service Area 58.00 0.12 6.96
IT/Server 8.00 0.12 0.96
Archive Room 8.00 0.08 0.64
Electrical Room 10.00 0.08 0.80
FM Room 4.00 0.08 0.32
ELV Room 8.00 0.08 0.64
First Aid Room 27.00 0.12 3.24
Radio Room 27.00 0.12 3.24
Male Toilet 17.00 0.08 1.36
Male Prayer Room 22.00 0.08 1.76
Male Ablution 10.00 0.08 0.80
Female Toilet 14.00 0.08 1.12
Female Prayer Room 17.00 0.08 1.36
Female Ablution 7.00 0.08 0.56
H.Toilet 6.00 0.08 0.48
Lift 10.00
Circulation 174.00 0.08 13.92
PF 3.2 Office-1F
Male Toilet 17.00 0.08 1.36
Female Toilet 14.00 0.08 1.12
H.Toilet 6.00 0.08 0.48
Janitor 4.00 0.08 0.32
Supt. Office 15.00 0.12 1.80
Supt. Office 15.00 0.12 1.80
Supt. Office 15.00 0.12 1.80
Manager Office 12.00 0.12 1.44
Manager Office 12.00 0.12 1.44
Manager Office 12.00 0.12 1.44
Open Office 95.00 0.12 11.40
Lounge Reception 35.00 0.12 4.20
Supervisor Office 24.00 0.12 2.88
Customs Office 37.00 0.12 4.44
Server Room 4.00 0.12 0.48
Server Room 9.00 0.12 1.08
Electrical Room 12.00 0.08 0.96
ELV Room 11.00 0.08 0.88
Pantry 6.00 0.20 1.20
Conference Room 36.00 0.12 4.32
Control Room 49.00 0.12 5.88
Copy Room 10.00 0.12 1.20
Break Room 19.00 0.10 1.90
Circulation 132.00 0.08 10.56

PF 3.9 Widam Office

Building-GF
Vet Office 15.30 0.12 1.84
Vet Office 15.30 0.12 1.84
Men 5.75 0.08 0.46
Women 5.75 0.08 0.46
Pantry 4.00 0.20 0.80
Janitor 2.30 0.08 0.18
Admin Office 39.00 0.12 4.68
ELV Room 3.80 0.08 0.30
FM Room 2.00 0.08 0.16
Electrical Room 3.80 0.08 0.30
Store 13.50 0.08 1.08
Customs Office 20.80 0.12 2.50
Clinic 9.60 0.12 1.15
Waiting 30.80 0.12 3.70
Male Toilet 9.20 0.08 0.74
Male Prayer Room 26.40 0.08 2.11
Male Ablution 5.70 0.08 0.46
Female Toilet 8.50 0.08 0.68
Female Prayer Room 7.20 0.08 0.58
Female Ablution 4.80 0.08 0.38
Arcade Area 668.90 0.05 33.45
Circulation 71.50 0.08 5.72
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
OST OFFSHORE SUPPLY TERMINAL
PF 5.1 Office-GF
Canteen 87.00 0.25 21.75
Copy Room 5.50 0.12 0.66
Office B 85.00 0.12 10.20
Customer Service Mgr. 20.00 0.12 2.40
Facility Sec. Mgr. 17.00 0.12 2.04
Entry Sec. Office 16.00 0.12 1.92
Sec. ctrl Office 16.00 0.12 1.92
First Aid Room 12.00 0.12 1.44
Radio Room 12.00 0.12 1.44
Office A 76.20 0.12 9.14
IT/Server 12.50 0.12 1.50
FM Room 3.00 0.12 0.36
Electrical Room 6.00 0.08 0.48
Telecom Room 6.30 0.08 0.50
Lift Lobby 19.20 0.08 1.54
Lobby 37.20 0.08 2.98
Cafeteria 140.60 0.10 14.06
Receiving Area 12.00 0.10 1.20
Kitchen 41.50 0.50 20.75
Dry Store 16.50 0.08 1.32
Trash 9.80 0.08 0.78
Cook Office 9.00 0.12 1.08
Cold Store 10.00 0.50 5.00
Store 2.30 0.08 0.18
Male Toilet 20.70 0.08 1.66
Male Prayer Room 37.40 0.08 2.99
Male Ablution 10.00 0.08 0.80
Female Toilet 10.00 0.08 0.80
Female Prayer Room 25.60 0.08 2.05
Female Ablution 8.20 0.08 0.66
Janitor 3.60 0.08 0.29
Circulation 221.90 0.08 17.75
Lift 10.00
PF 5.1 Office-1F
Terminal Mgr. 1 16.00 0.12 1.92
Terminal Mgr. 2 13.20 0.12 1.58
Terminal Mgr. 3 17.00 0.12 2.04
Control Room 32.00 0.12 3.84
File Room 11.70 0.08 0.94
M.Toilet 21.50 0.08 1.72
F.Toilet 16.00 0.08 1.28
Main Store 26.00 0.08 2.08
Pantry 9.50 0.20 1.90
Janitor 6.00 0.08 0.48
Electrical Room 6.00 0.08 0.48
Telecom Room 4.50 0.08 0.36
Lobby 20.00 0.08 1.60
Conference Room 66.00 0.12 7.92
Office A 90.00 0.12 10.80
Copy Room 9.00 0.12 1.08
Meeting Room 19.00 0.12 2.28
Office B 122.60 0.12 14.71
Supf Office 12.80 0.12 1.54
Supf Office 13.00 0.12 1.56
Supf Office 13.00 0.12 1.56
Supf Office 13.00 0.12 1.56
Supf Office 13.00 0.12 1.56
Supf Office 13.00 0.12 1.56
Supf Office 13.00 0.12 1.56
Supf Office 13.00 0.12 1.56
Circulation 190.20 0.08 15.22
PF 5.4 OST Workshop
Compressor Room 20.00 0.20 4.00
Paint Spray Room 30.00 0.20 6.00
Machine & Body Repair 30.00 0.20 6.00
Electrical Room 30.00 0.08 2.40
Mechanical Room 30.00 0.08 2.40
Waste Collection Rm 22.00 0.20 4.40
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
Large Forklift repair Bay 265.00 0.20 53.00

265.00 0.20 53.00

Terminal Support Vehicles
Chassis 178.00 0.20 35.60
Tractor Repair bay 178.00 0.20 35.60
Machine Shop 114.00 0.20 22.80
Supt. Office 10.00 0.12 1.20
First Aid Room 11.00 0.12 1.32
Supt. Office 9.00 0.12 1.08
Toilets/Showers 37.00 0.08 2.96
Locker/Chg. Rooms 14.00 0.08 1.12
Uniform 7.00 0.08 0.56
Pantry 7.00 0.20 1.40
Facility Main 34.00 0.12 4.08
Crane parts 36.00 0.08 2.88
 2646 Port Buildings Doha

Ref.
No. BUILDING NAME AREA ROOM NAME AREA IN m2 Watts/m2 TOTAL IN kW
Labor Break Room 53.00 0.10 5.30
Corridor 57.00 0.08 4.56
Lobby 19.00 0.08 1.52
Reception 10.00 0.12 1.20
Electrical Room 9.00 0.08 0.72
FM Room 2.00 0.08 0.16
ELV Room 7.00 0.08 0.56
Secure Parts & Tools 35.00 0.08 2.80
Storage
Bulk Fluids 40.00 0.08 3.20
Parts Storage 136.00 0.08 10.88
Office 14.00 0.12 1.68
Office 14.00 0.12 1.68
Male Toilet 15.00 0.08 1.20
Male Prayer Room 26.00 0.08 2.08
Male Ablution 9.00 0.08 0.72
Female Prayer Room 13.00 0.08 1.04
Female Ablution 5.00 0.08 0.40
Janitor 3.00 0.08 0.24
Circulation 331.00 0.08 26.48
PF 5.10 Gate Complex
Clerk Booth 15.20 0.12 1.82
Canopy Area 374.40 0.05 18.72

THE TOTAL CONNECTED LOAD IN kW = 3935.86
