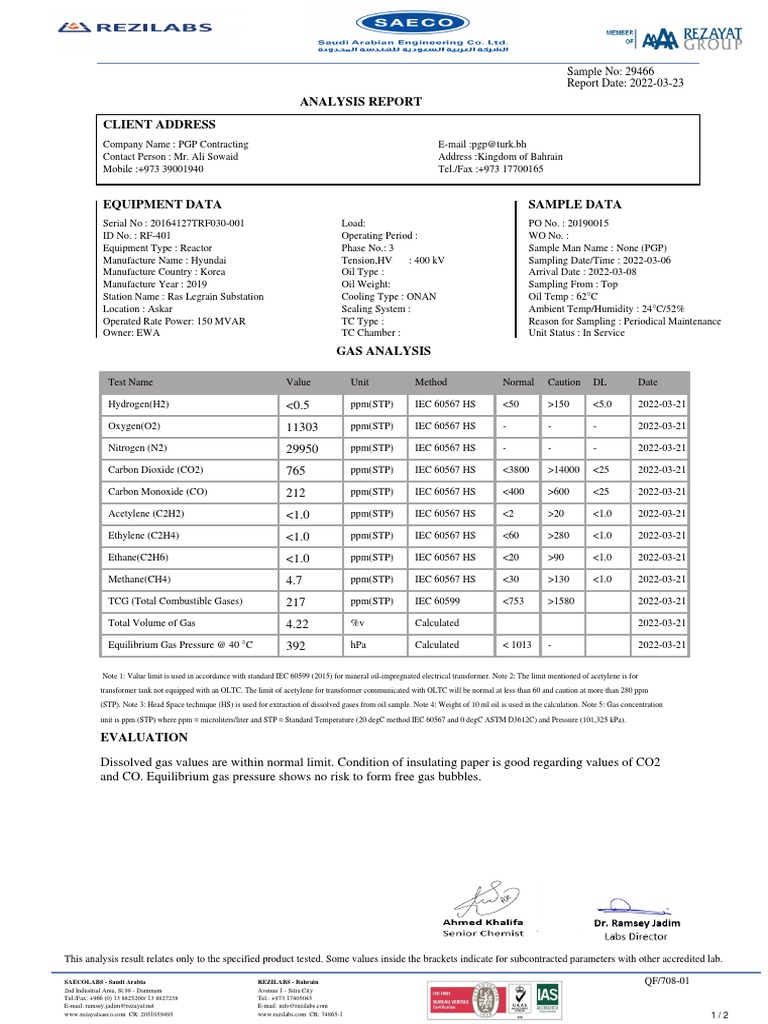

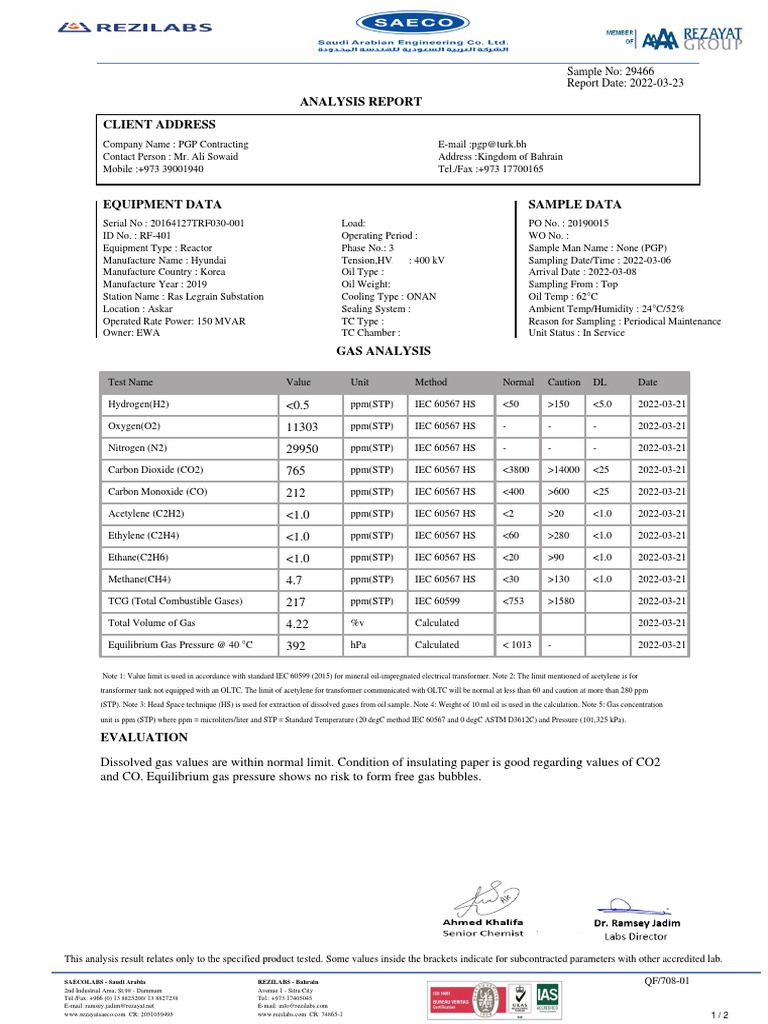

Sample No: 29466

Report Date: 2022-03-23

ANALYSIS REPORT
CLIENT ADDRESS
Company Name : PGP Contracting E-mail :pgp@turk.bh
Contact Person : Mr. Ali Sowaid Address :Kingdom of Bahrain
Mobile :+973 39001940 Tel./Fax :+973 17700165

EQUIPMENT DATA SAMPLE DATA

Serial No : 20164127TRF030-001 Load: PO No. : 20190015
ID No. : RF-401 Operating Period : WO No. :
Equipment Type : Reactor Phase No.: 3 Sample Man Name : None (PGP)
Manufacture Name : Hyundai Tension,HV/LV: 400 kV Sampling Date/Time : 2022-03-06
Manufacture Country : Korea Oil Type : Arrival Date : 2022-03-08
Manufacture Year : 2019 Oil Weight: Sampling From : Top
Station Name : Ras Legrain Substation Cooling Type : ONAN Oil Temp : 62°C
Location : Askar Sealing System : Ambient Temp/Humidity : 24°C/52%
Operated Rate Power: 150 MVAR TC Type : Reason for Sampling : Periodical Maintenance
Owner: EWA TC Chamber : Unit Status : In Service
GAS ANALYSIS

Test Name Value Unit Method Normal Caution DL Date

Hydrogen(H2) <0.5 ppm(STP) IEC 60567 HS <50 >150 <5.0 2022-03-21

Oxygen(O2) 11303 ppm(STP) IEC 60567 HS - - - 2022-03-21

Nitrogen (N2) 29950 ppm(STP) IEC 60567 HS - - - 2022-03-21

Carbon Dioxide (CO2) 765 ppm(STP) IEC 60567 HS <3800 >14000 <25 2022-03-21

Carbon Monoxide (CO) 212 ppm(STP) IEC 60567 HS <400 >600 <25 2022-03-21

Acetylene (C2H2) <1.0 ppm(STP) IEC 60567 HS <2 >20 <1.0 2022-03-21

Ethylene (C2H4) <1.0 ppm(STP) IEC 60567 HS <60 >280 <1.0 2022-03-21

Ethane(C2H6) <1.0 ppm(STP) IEC 60567 HS <20 >90 <1.0 2022-03-21

Methane(CH4) 4.7 ppm(STP) IEC 60567 HS <30 >130 <1.0 2022-03-21

TCG (Total Combustible Gases) 217 ppm(STP) IEC 60599 <753 >1580 2022-03-21

Total Volume of Gas 4.22 %v Calculated 2022-03-21

Equilibrium Gas Pressure @ 40 °C 392 hPa Calculated < 1013 - 2022-03-21

Note 1: Value limit is used in accordance with standard IEC 60599 (2015) for mineral oil-impregnated electrical transformer. Note 2: The limit mentioned of acetylene is for

transformer tank not equipped with an OLTC. The limit of acetylene for transformer communicated with OLTC will be normal at less than 60 and caution at more than 280 ppm

(STP). Note 3: Head Space technique (HS) is used for extraction of dissolved gases from oil sample. Note 4: Weight of 10 ml oil is used in the calculation. Note 5: Gas concentration

unit is ppm (STP) where ppm = microliters/liter and STP = Standard Temperature (20 degC method IEC 60567 and 0 degC ASTM D3612C) and Pressure (101,325 kPa).

EVALUATION

Dissolved gas values are within normal limit. Condition of insulating paper is good regarding values of CO2
and CO. Equilibrium gas pressure shows no risk to form free gas bubbles.

This analysis result relates only to the specified product tested. Some values inside the brackets indicate for subcontracted parameters with other accredited lab.

SAECOLABS - Saudi Arabia REZILABS - Bahrain QF/708-01

2nd Industrial Area, St.98 - Dammam Avenue 1 - Sitra City
Tel./Fax: +966 (0) 13 8825200/ 13 8827238 Tel.: +973 17405045
E-mail: ramsey.jadim@rezayat.net E-mail: info@rezilabs.com
www.rezayatsaeco.com CR: 2051059495 www.rezilabs.com CR: 74865-1 1/2
 Sample No: 29466
Report Date: 2022-03-23
OIL ANALYSIS-A

Test Name Value Unit Method Normal Caution DL Date

Acidity (Neutralization Value) <0.01 mg KOH/g IEC 62021-1 <0.10 >0.15 0.01 2022-03-23

Water Content @20°C 1.3 ppm IEC 60814 - - -

Water Content @ Operating Temp. 6.8 ppm IEC 60422 <15 >20 -

Humidity in Cellulose 0.1 %w Oommen Chart <2 -

Interfacial Tension (IFT) 30 mN/meter ASTM D971 >28 <22

Dissipation Factor (DF) @ 90 °C/ 60Hz 0.001297 - IEC 60247 <0.10 >0.20 2022-03-23

Room Test Temperature (RT) 22 °C - 2022-03-23

Room Test Humidity (RH) 35 % - 2022-03-23

Oil Quality Index (OQIN) 3000 - Calculated >300 - 2022-03-23

Color <0.5 ASTM Color ASTM D1500 - - 2022-03-23

Note 1: Value limit is used in accordance with the standard IEC 60422 (2013) for insulating oil in-service according to the Category A where the HV-system above 170kV and up to

and including 400kV. Note 2: Cell type used for DF test ASTM D924 method is IEC 60247 Fig.3 (73.0pF). Average Voltage gradient (Electrical stress) = 1000 VAC/mm. Test

Frequency = 60 Hz for D924 and 55 Hz for IEC60247. Resistivity is calculated at 250V/mm; 60s short-circuit; 90C. Note 3: DL=Detection limit along with calibration of our

instruments according to ISO 17025 requirement. Note 4: Optimal limits of passivators BTA and Irgamet 39, and caution limits of DBDS and sulfur mercaptan are according to IEEE

Journal; https://ur.booksc.eu/book/61490488/b0d22f. Note 5: Limits of H2S and toluene are according to IEEE Journal: https://ieeexplore.ieee.org/document/9215129. Note 6: Limits

of Dissipation Factor (DF) @100°C and @25°C are according to standard IEEE C57.106. Note 7: Value limit of DP-value is used in accordance with the standard IEC 60450 and

Cigre 323

EVALUATION

There is no indication of the oxidation process in the oil since the values of acidity and water are within the
normal level. IFT confirms no oxidation products in the oil. DF shows no ionic compounds in the oil. Quality
index value and other physical parameters show good oil quality.

RECOMMENDATION

A new sample is recommended annually, or as the client maintenance plan.

This analysis result relates only to the specified product tested. Some values inside the brackets indicate for subcontracted parameters with other accredited lab.
