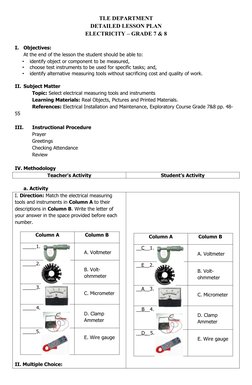

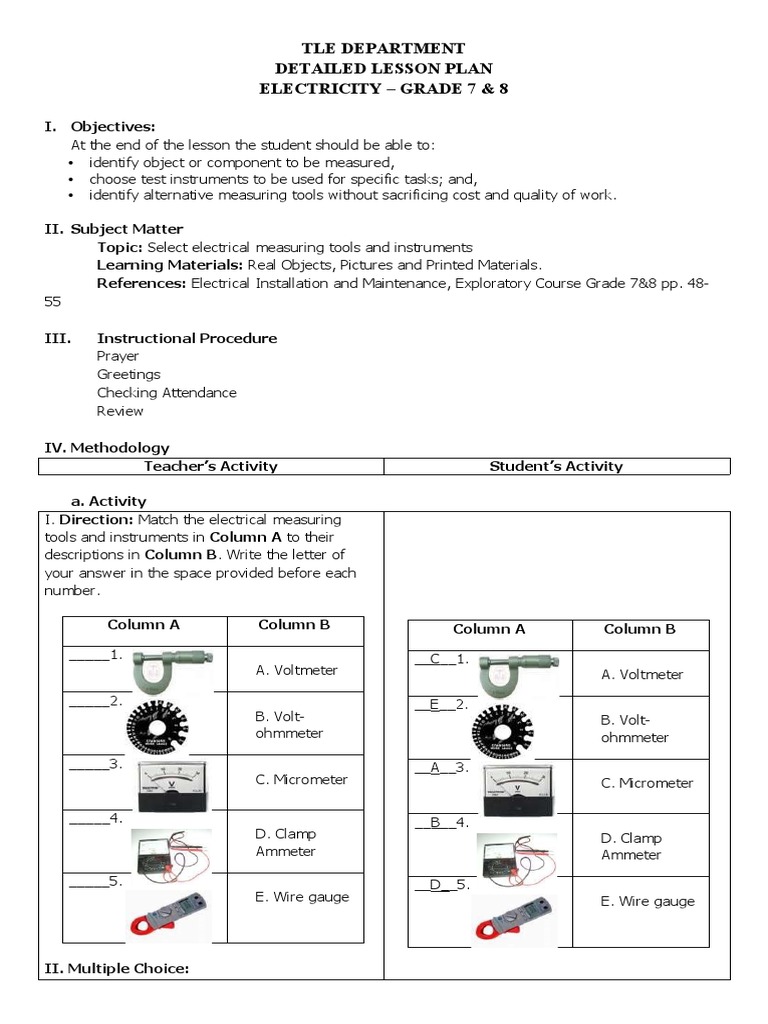

TLE DEPARTMENT
DETAILED LESSON PLAN
ELECTRICITY – GRADE 7 & 8
I. Objectives:
At the end of the lesson the student should be able to:
• identify object or component to be measured,
• choose test instruments to be used for specific tasks; and,
• identify alternative measuring tools without sacrificing cost and quality of work.
II. Subject Matter
Topic: Select electrical measuring tools and instruments
Learning Materials: Real Objects, Pictures and Printed Materials.
References: Electrical Installation and Maintenance, Exploratory Course Grade 7&8 pp. 48-
55
III. Instructional Procedure
Prayer
Greetings
Checking Attendance
Review
IV. Methodology
Teacher’s Activity Student’s Activity
a. Activity
I. Direction: Match the electrical measuring
tools and instruments in Column A to their
descriptions in Column B. Write the letter of
your answer in the space provided before each
number.
Column A Column B Column A Column B
_____1. __C__1.
A. Voltmeter A. Voltmeter
_____2. __E__2.
B. Volt- B. Volt-
ohmmeter ohmmeter
_____3. __A__3.
C. Micrometer C. Micrometer
_____4. __B__4.
D. Clamp D. Clamp
Ammeter Ammeter
_____5. __D__5.
E. Wire gauge E. Wire gauge
II. Multiple Choice:

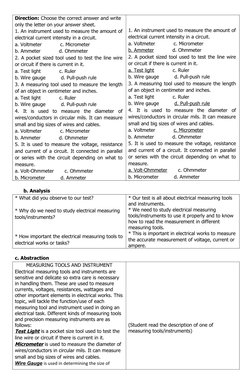

Direction: Choose the correct answer and write
only the letter on your answer sheet.
1. An instrument used to measure the amount of 1. An instrument used to measure the amount of
electrical current intensity in a circuit. electrical current intensity in a circuit.
a. Voltmeter c. Micrometer a. Voltmeter c. Micrometer
b. Ammeter d. Ohmmeter b. Ammeter d. Ohmmeter
2. A pocket sized tool used to test the line wire 2. A pocket sized tool used to test the line wire
or circuit if there is current in it. or circuit if there is current in it.
a. Test light c. Ruler a. Test light c. Ruler
b. Wire gauge d. Pull-push rule b. Wire gauge d. Pull-push rule
3. A measuring tool used to measure the length 3. A measuring tool used to measure the length
of an object in centimeter and inches. of an object in centimeter and inches.
a. Test light c. Ruler a. Test light c. Ruler
b. Wire gauge d. Pull-push rule b. Wire gauge d. Pull-push rule
4. It is used to measure the diameter of 4. It is used to measure the diameter of
wires/conductors in circular mils. It can measure wires/conductors in circular mils. It can measure
small and big sizes of wires and cables. small and big sizes of wires and cables.
a. Voltmeter c. Micrometer a. Voltmeter c. Micrometer
b. Ammeter d. Ohmmeter b. Ammeter d. Ohmmeter
5. It is used to measure the voltage, resistance 5. It is used to measure the voltage, resistance
and current of a circuit. It connected in parallel and current of a circuit. It connected in parallel
or series with the circuit depending on what to or series with the circuit depending on what to
measure. measure.
a. Volt-Ohmmeter c. Ohmmeter a. Volt-Ohmmeter c. Ohmmeter
b. Micrometer d. Ammeter b. Micrometer d. Ammeter
b. Analysis
* What did you observe to our test? * Our test is all about electrical measuring tools
and instruments.
* Why do we need to study electrical measuring * We need to study electrical measuring
tools/instruments? tools/instruments to use it properly and to know
how to read the measurement in different
measuring tools.
* This is important in electrical works to measure
* How important the electrical measuring tools to
the accurate measurement of voltage, current or
electrical works or tasks?
ampere.
c. Abstraction
MEASURING TOOLS AND INSTRUMENT
Electrical measuring tools and instruments are
sensitive and delicate so extra care is necessary
in handling them. These are used to measure
currents, voltages, resistances, wattages and
other important elements in electrical works. This
topic, will tackle the function/use of each
measuring tool and instrument used in doing an
electrical task. Different kinds of measuring tools
and precision measuring instruments are as
follows: (Student read the description of one of
Test Light is a pocket size tool used to test the measuring tools/instruments)
line wire or circuit if there is current in it.
Micrometer is used to measure the diameter of
wires/conductors in circular mils. It can measure
small and big sizes of wires and cables.
Wire Gauge is used in determining the size of

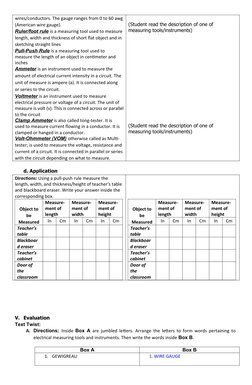

wires/conductors. The gauge ranges from 0 to 60 awg
(American wire gauge). (Student read the description of one of
Ruler/foot rule is a measuring tool used to measure measuring tools/instruments)
length, width and thickness of short flat object and in
sketching straight lines
Pull-Push Rule is a measuring tool used to
measure the length of an object in centimeter and
inches
Ammeter is an instrument used to measure the
amount of electrical current intensity in a circuit. The
unit of measure is ampere (a). It is connected along
or series to the circuit.
Voltmeter is an instrument used to measure
electrical pressure or voltage of a circuit. The unit of
measure is volt (v). This is connected across or parallel
to the circuit
Clamp Ammeter is also called tong-tester. It is
used to measure current flowing in a conductor. It is (Student read the description of one of
clamped or hanged in a conductor. measuring tools/instruments)
Volt-Ohmmeter (VOM) otherwise called as Multi-
tester; is used to measure the voltage, resistance and
current of a circuit. It is connected in parallel or series
with the circuit depending on what to measure.
d. Application
Directions: Using a pull-push rule measure the
length, width, and thickness/height of teacher’s table
and blackboard eraser. Write your answer inside the
corresponding box.
Measure- Measure- Measure- Measure- Measure- Measure-
Object to ment of ment of ment of Object to ment of ment of ment of
be length width height be length width height
Measured In Cm In Cm In Cm Measured In Cm In Cm In Cm
Teacher’s Teacher’s
table table
Blackboar Blackboar
d eraser d eraser
Teacher’s Teacher’s
cabinet cabinet
Door of Door of
the the
classroom classroom
V. Evaluation
Text Twist:
A. Directions: Inside Box A are jumbled letters. Arrange the letters to form words pertaining to
electrical measuring tools and instruments. Then write the words inside Box B.
Box A Box B
1. GEWIGREAU 1. WIRE GAUGE
2. MVLTETEOR 2. VOLT METER
3. AACMPLMMTREE 3. CLAMP AMMETER
4. RPPULLUSHULE- 4. PULL-PUSH RULE
B. Directions: Describe at least two of your answer in Test A.
1._________________________________________________________
__________________________________________________________
__________________________________________________________
2._________________________________________________________
__________________________________________________________
__________________________________________________________
VI. Assignment
Research in advance about system of measurement.
