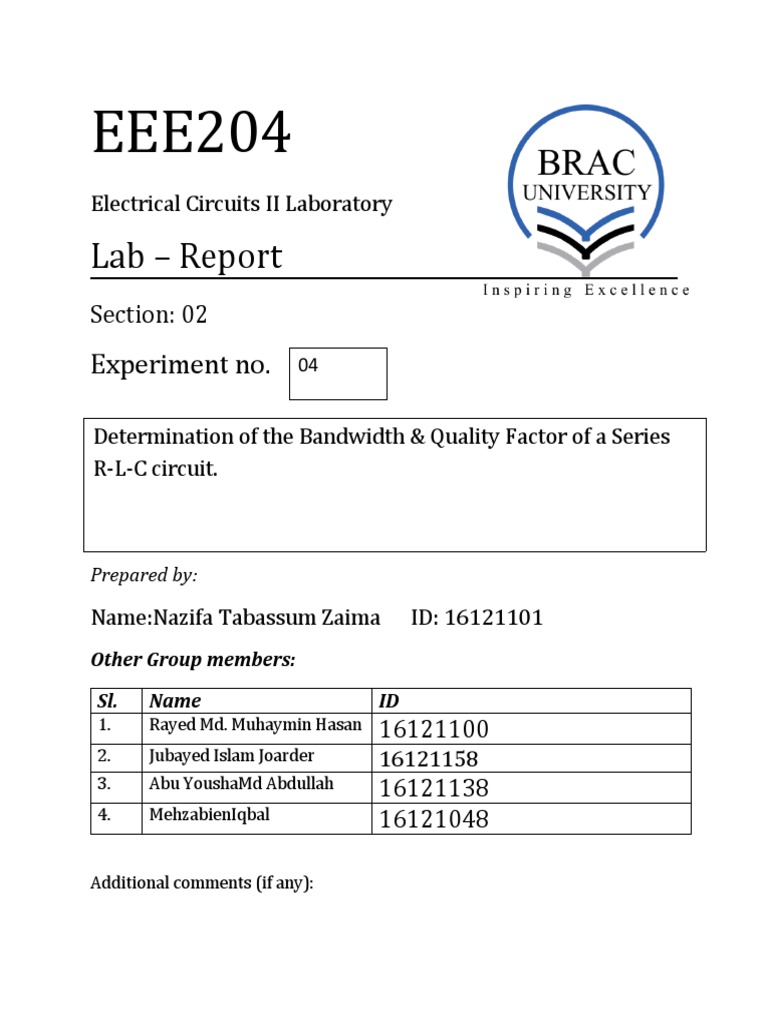

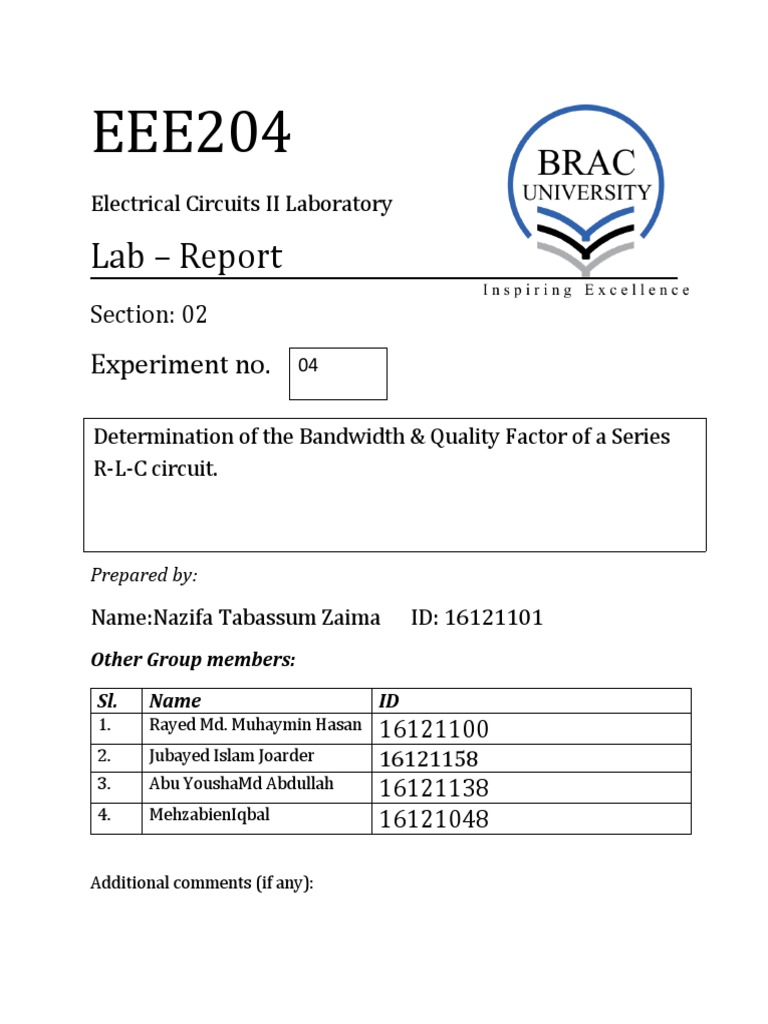

EEE204

Electrical Circuits II Laboratory

Lab – Report
Section: 02
Experiment no. 04

Determination of the Bandwidth & Quality Factor of a Series

R-L-C circuit.

Prepared by:

Name:Nazifa Tabassum Zaima ID: 16121101

Other Group members:

Sl. Name ID
1. Rayed Md. Muhaymin Hasan 16121100
2. Jubayed Islam Joarder 16121158
3. Abu YoushaMd Abdullah 16121138
4. MehzabienIqbal 16121048

Additional comments (if any):

Objective : Determination of the Bandwidth & Quality Factor of a
Series R-L-C circuit.

Equipments:

Resistance: 620 
Inductor: 100mH
Capacitor: 0.1uf
Oscilloscope
Signal Generator
Multi-meter
Bread Broad
Probes and connecting wires
Circuit Diagram :

Table and calculations :

Obs. f(Hz) VR VL VC

1 1000 0.55 0.64 1.94

2 1200 0.76 1.05 2.25
3 1400 0.98 1.56 2.39
4 1600 1.11 2.13 2.43
5 1900 1.09 2.24 1.99
6 2200 0.91 2.36 1.41
7 2500 0.71 2.33 0.97
As we know at resonance point VR = VC, from the table we can
say that at frequency 1600Hz VL is close to VC. So we can
consider this point as our fr, but theoretically putting the
values into the following formula we get,
1
fr = 2 π √ LC = 1591.55Hz
at this point, VL = 2.03, VC = 2.37 and VR = 1.06
practically, fr=1.71KHz

Report :
 1.2

1
Voltage Across Resistor VR

0.8

0.6

0.4

0.2

0
800 1000 1200 1400 1600 1800 2000 2200 2400 2600
Frequency f

1. Maximum value of VR = 1.11 and corresponding fr = 1600

2. Values of VR at half power point are 0.76V and 0.91V
3.Values of cut off frequencies are f1 = 1200Hz and f2 = 2200Hz
4.BW= f2-f1 = 2200-1200 = 1000Hz
5.Q= 1.6
6.from equation 2, Q= 1600/(2200-1200)= 1.6
100 mH
from equation 4, Q=(1/620)X √ 0.1u
= 1.6
XL = 2 π × 1600 ×100 mH =1005.31

From equation 5, Q= 1005.31/620 =1.6

Therefore, equation 2,4,5 in verified.

Discussion :
Although theoretically we found fr is 1591.55Hz but practically we saw
value of fr is 1.71KHz. Wave shape for both the frequencies are given
below,
PSpice Simulation
